Hitting with different joints of a manipulator

The idea

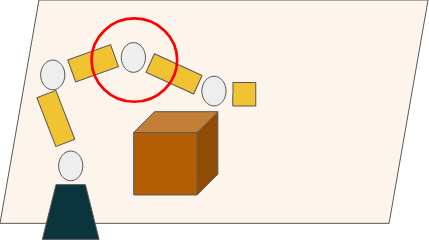

Humans don't only push objects with their fingertips - we use elbows, forearms and the backs of our hands. This paper extends the robot skill of manipulation through hitting in the same spirit: instead of always striking with the end-effector, the robot makes contact using other links along its kinematic chain. Because a robot's effective inertia is higher at joints closer to its base, hitting with those links lets it move heavier objects than an end-effector strike could.

Why inertia matters

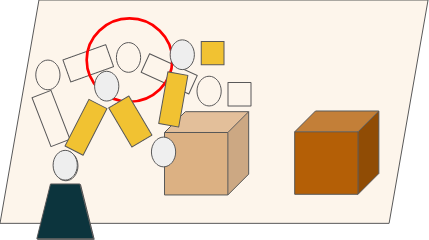

The work builds on hitting flux - a scaled post-impact object speed derived from collision mechanics that couples the robot's directional effective inertia (λ_h), its contact speed and the object mass. Since a link's effective inertia depends on the configuration of the joints before it in the chain, the joints ahead of a chosen hitting link can be rearranged to raise the inertia at the contact point - without changing that link's Cartesian velocity.

Method

• Hitting-joint selection: a maximum-flux analysis (a linear program under joint-velocity limits) predicts which joint delivers the strongest hit for a given object and location.
• Impact-posture generation: inverse kinematics places the chosen link at the object, while a null-space objective orients the remaining joints to maximise directional inertia in the hitting direction.
• Desired-inertia tracking: a per-control-loop quadratic program (OSQP in PyBullet) computes the next feasible joint velocities under flux and joint limits, feeding a smooth reference inertia into the arm's inertia-regulating controller.

Results

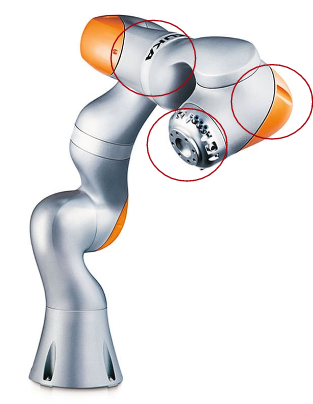

On a simulated 7-DoF KUKA LBR iiwa, focusing on joints 5, 6 and 7, a well-chosen link produces markedly stronger hits: the directional inertia when striking with joint 6 (3.9 kg) is roughly 56% higher than with joint 7 (2.5 kg), letting the robot impart more momentum to the same object. This is preliminary work; ongoing extensions learn a distribution over feasible hitting configurations to warm-start the optimisation.
