Repeatable Motion Generation for a robot to hit an object

The problem

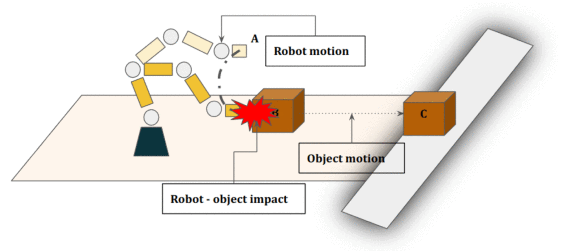

Pick-and-place and quasi-static pushing confine a fixed manipulator to its own workspace and to objects within its payload limits. Hitting - making contact at a non-zero relative speed - lets a robot place objects beyond its reach, impart velocities exceeding its own hardware limits, and act faster than pushing. But the outcome of a hit depends jointly on the robot's configuration, its speed and the object's inertial properties, which previously meant re-learning a separate model for every object.

Key contribution: hitting flux

The paper proposes hitting flux (Φ), a control metric derived from collision mechanics that depends on the robot's directional inertia, its speed and the object mass, and is directly proportional to the object's post-impact speed. By controlling this single quantity, the post-impact object behaviour is decoupled from the specific pre-impact joint configuration - so the same desired flux produces the same object motion from many different robot postures.

Method

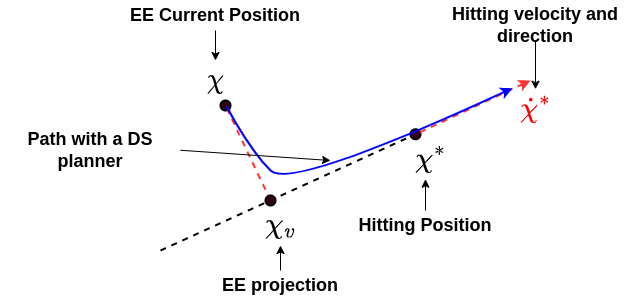

• DS-based motion planner: a dynamical system generates the pre-impact hitting motion in 3D task space, driving the end-effector through the contact point at the required direction and speed.
• Directional-inertia control: a control structure regulates the robot's directional inertia so the desired flux is actually realised at impact.
• Inertia-matrix QP: a quadratic program uses the gradient of the Stein distance on the SPD manifold to reach a desired inertia matrix at a desired position while respecting joint limits - exploiting the arm's redundancy.

Results

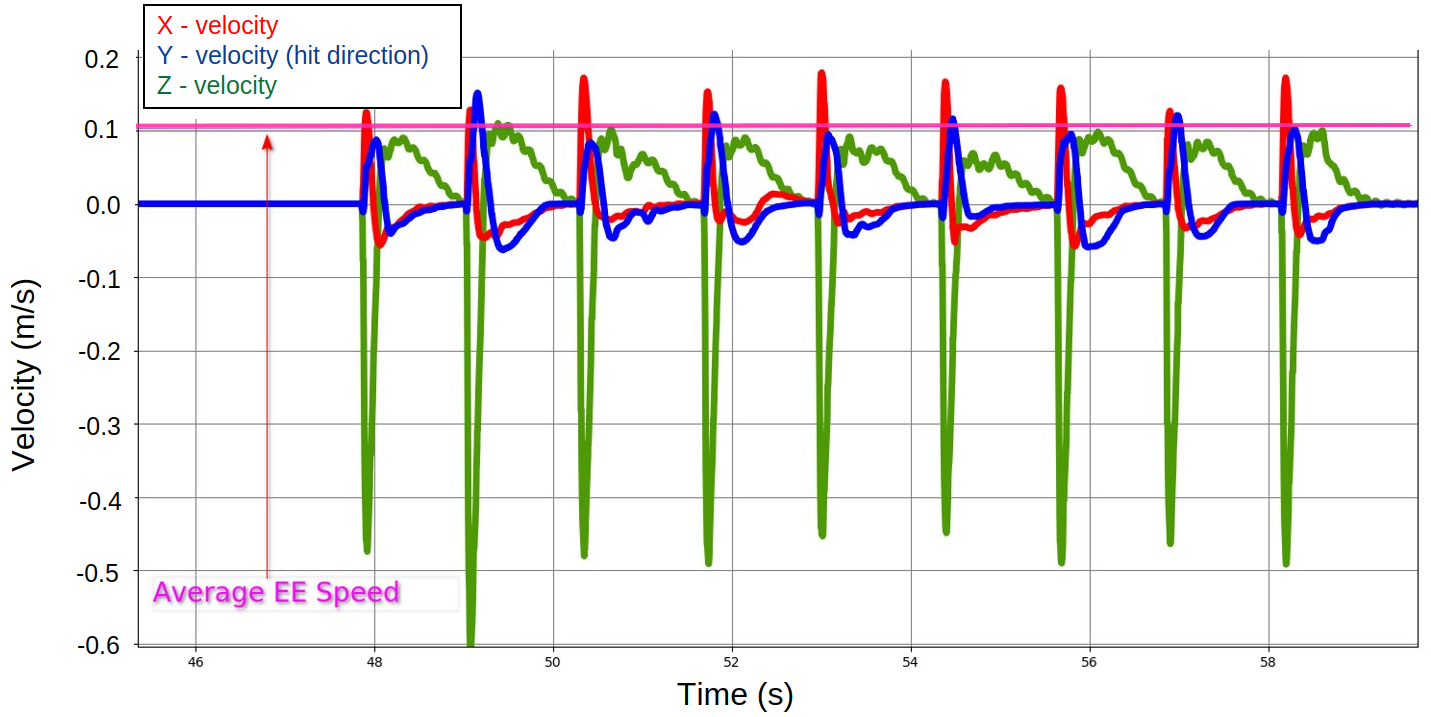

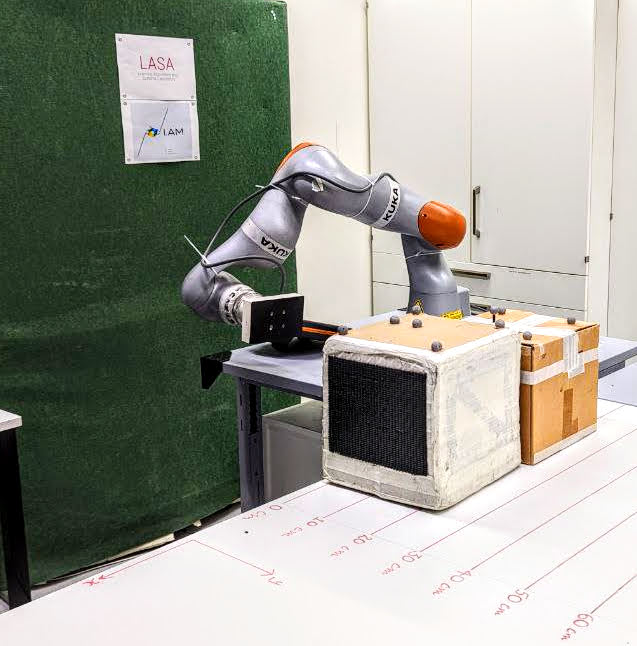

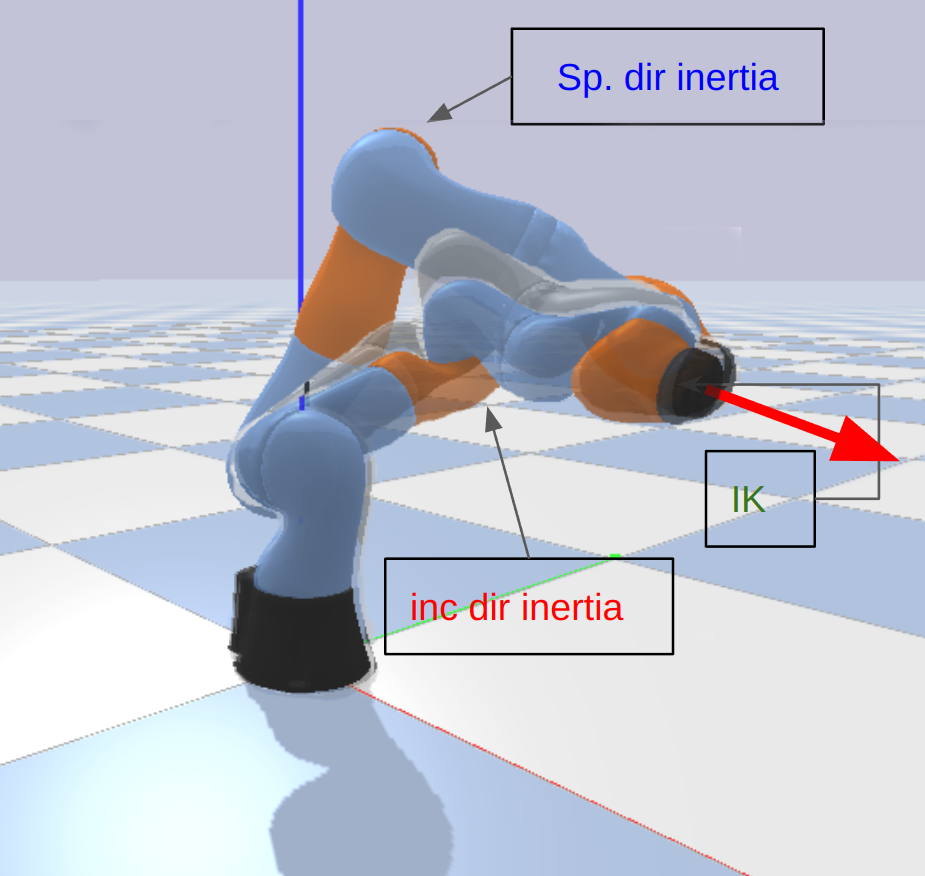

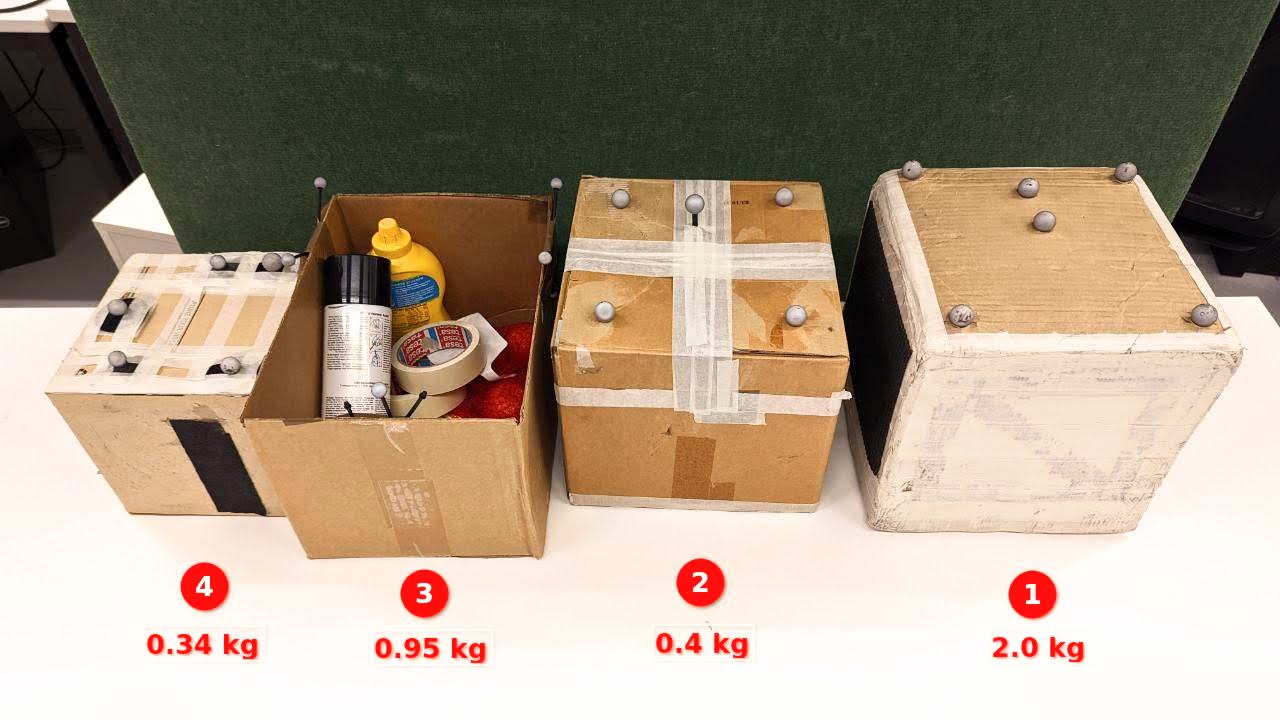

Validated in simulation over ~192 trajectories and on a real KUKA LBR iiwa 7, the approach produces repeatable post-impact object motion (RMSE in average object displacement) and generalises across boxes of different sizes and masses, including open boxes with uneven mass distribution unsuitable for suction grippers. The inertia-QP controller reaches configurations far closer to the desired inertia than a plain inverse-kinematics controller.
